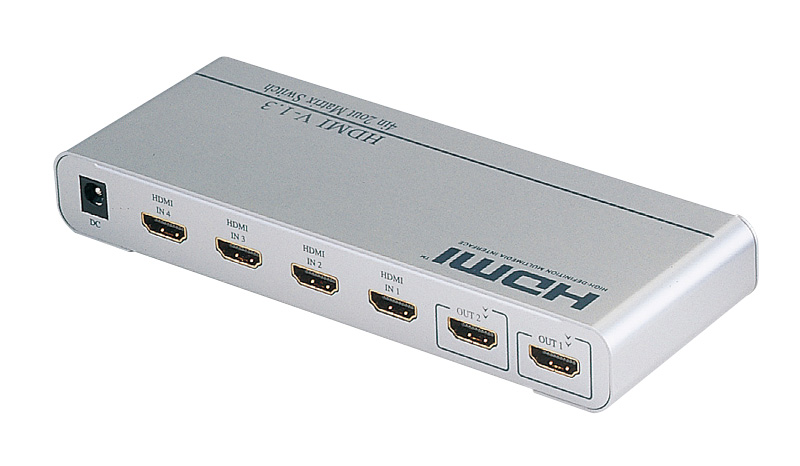

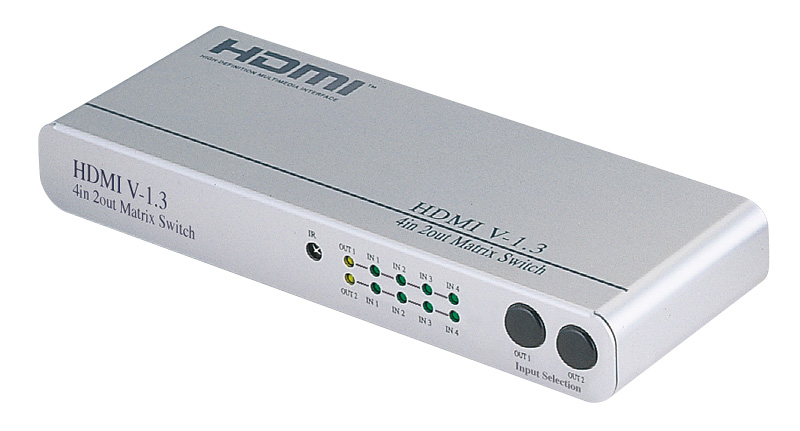

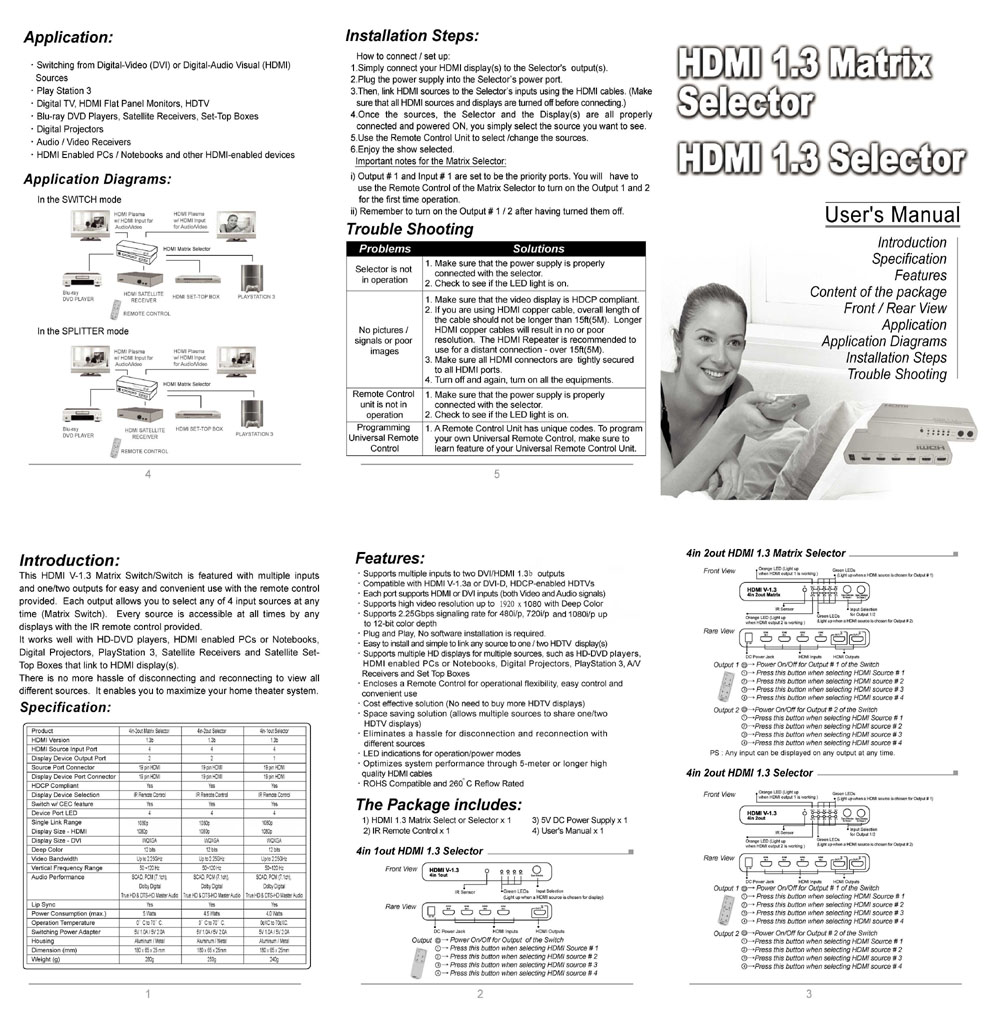

4in 2out HDMI V-1.3 Real Matrix Switch



Introduction
This HDMI V-1.3 Matrix Switch is featured with multiple inputs and two outputs for easy and convenient use with the remote control provided.  Each output allows you to select any of 4 input sources at any time.  Every source is accessible at all times by any displays with the IR remote control provided.

This HDMI 1.3 Matrix Switch supports two DVI or HDMI receivers to enable multiple-source selection.  It also supports 2.25 Gbps Digital Audiovisual signaling rate for 480i/p, 720i/p, 1080i/p and even 1440i/1440p.

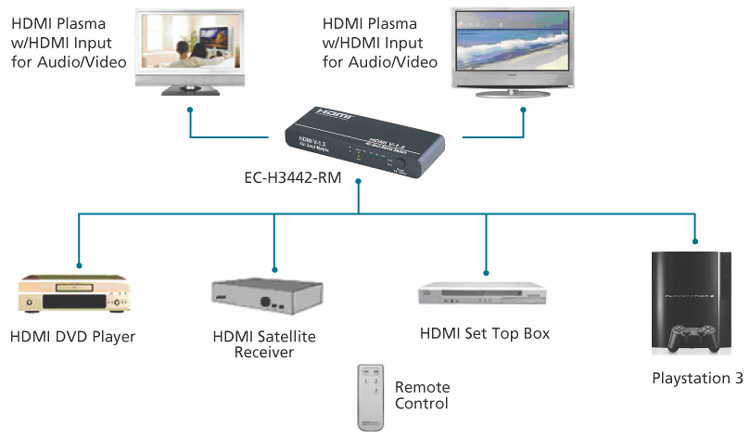

There is no more hassle of disconnecting and reconnecting to view all different sources.  It enables you to maximize your home theater system.  It works well with HD-DVD players, HDMI enabled PCs or Notebooks, Digital Projectors, PlayStation 3, Satellite Receivers and Satellite Set-Top Boxes that link to HDMI display(s).


Specification

Product

4in-2out Matrix Selector

HDMI Source Input Port

4

Display Device Output Port

2

Source Port Connector

19 pin HDMI

Display Device Port Connector

19 pin HDMI

HDCP Compliant

Yes

Display Device Selection

IR Remote Control

Switch w/ CEC feature

No

Device Port LED

4

Single Link Range

1080p ~ 1440p / 1920x1440

Deep Color

12 bits

Video Bandwidth

Up to 2.25GHz

Vertical Frequency Range

50~120 Hz

Power Consumption (max.)

4.5 Watts

Operation Temperature

0¢XC to 70¢XC.

Switching Power Adapter

5V 1.0A

Housing

Aluminum / Metal

Dimension (mm)

180 x 65 x 25mm

Weight (g)

245g


Features
  ¡P Supports 4 inputs to 2 single- or dual-link DVI/HDMI (HDMI V-1.3a) outputs
  ¡P Compatible with HDMI V-1.3a or DVI-D, HDCP-enabled HDTVs
  ¡P Each port supports HDMI or DVI inputs (both Video and Audio signals)
  ¡P Supports high video resolution up to 1920 x 1440 with 12 bit color depth
  ¡P Supports 2.25Gbps signaling rate for 480i/p, 720i/p, 1080i/p and 1440i/p up to 12-bit
    color depth
  ¡P Plug and Play, No software installation is required.
  ¡P Easy to install and simple to link any four sources to one / two HDTV displays
  ¡P Supports multiple HD displays for multiple sources, such as HD-DVD players, HDMI
    enabled PCs or Notebooks, Digital Projectors, PlayStation 3, A/V Receivers and Set
    Top   Boxes
  ¡P Encloses a Remote Control for operational flexibility, easy control and convenient use
  ¡P Eliminates a hassle for disconnection and reconnection with different sources
  ¡P LED indications for operation/power modes
  ¡P Optimizes system performance through 5-meter or longer HDMI cables.
  ¡P ROHS Compatible
