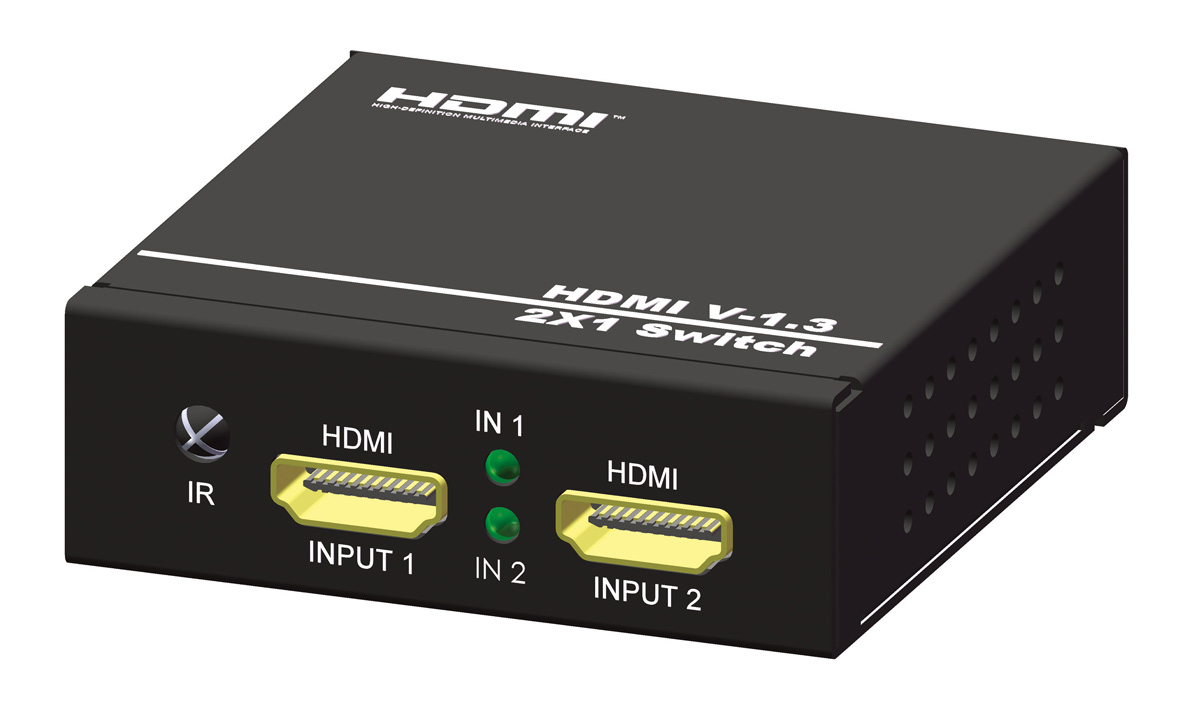

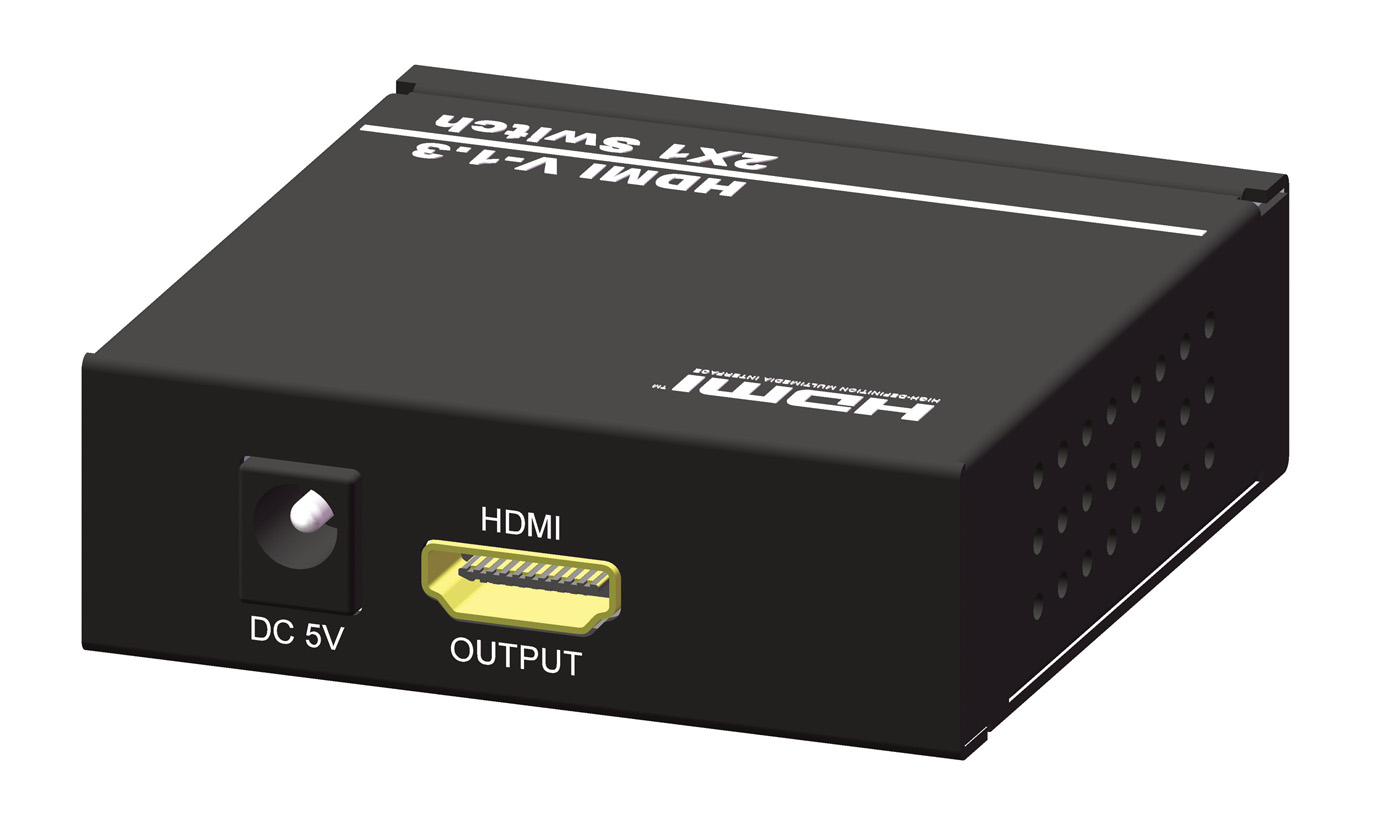

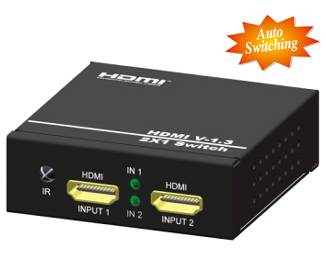

2in 1out HDMI Switch ¡V Economic Type ( EC-H3201E )




Introduction

  This 2x1 port HDMI Switch allows up to 2 DVI or HDMI ports to be easily and conveniently switched to two independent Digital Video Displays with the use of the remote control unit. This HDMI Switch supports one DVI or HDMI receivers to enable multiple-source selection (picture-in-picture). It also supports 2.25 Gbps Digital Audiovisual signaling rate for 480i/p, 720i/p, 1080i/p and even, 1440i/p.

  There is no more hassle of manually plugging in different HDMI connectors to view all different video sources. It enables you to maximize your home theater system.

Specification

Model

EC-H3201E

Product

2in-1out HDMI Switch

HDMI Source Input Port

2

Display Device Output Port

1

Source Port Connector

19 pin HDMI

Display Device Port Connector

19 pin HDMI

HDCP Compliant

Yes

Device Port LED

2

Single Link Range

Up to 2560 x 1440

Display Size ¡V HDMI

1080p ~1440p

Display Size ¡V DVI

WQXGA

Deep Color

12 bits

Video Bandwidth

Up to 2.25GHz

Vertical Frequency Range

50 ~120 Hz

Audio Performance

SCAD, PCM (7.1ch), Dolby TrueHD& DTS-HD Master Audio

Lip Sync

Yes

Remote Control

Yes

Power Consumption (max.)

15 Watts

Operation Temperature

0¢XC to 70¢XC.

Switching Power Adapter

X (no need)

Housing

Plastic / Metal

Dimension (mm)

Approx. 75 x 65 x 25 mm

Weight (g)

120g


Features
¡P  Supports 2 inputs to 1 single- or dual-link DVI/HDMI
¡P  Compatible with HDMI V-1.3a or DVI-D, HDCP-enabled HDTV
¡P  Each port supports HDMI or DVI inputs
¡P  Supports high video resolution up to 1920 x 1200 including 1080i/p
¡P  Supports Both Video and Audio Signals
¡P  Supports 2.25Gbps signaling rate for 480i/p, 720i/p and 1080i/p up to 12-bit color depth
¡P  Ensures the high definition signal is sent through without any signal loss
¡P  Plug and Play, No software installation is required.
¡P  Easy to install and simple to link any four sources to one / two HDTV displays
¡P  Supports multiple HD displays for multiple sources, such as DVD Players and Satellite Receivers,
   Digital Projectors, A/V Receivers, Set Top Boxes
¡P  Encloses a Remote Control for operational flexibility, easy control and convenient use
¡P  Eliminates a hassle for disconnection and reconnection of multiple video sources
¡P  LED indications for operation/power modes
¡P  Optimizes system performance through 5-meter or longer HDMI cables.
¡P  ROHS Compatible and 260¢XC Reflow Rated

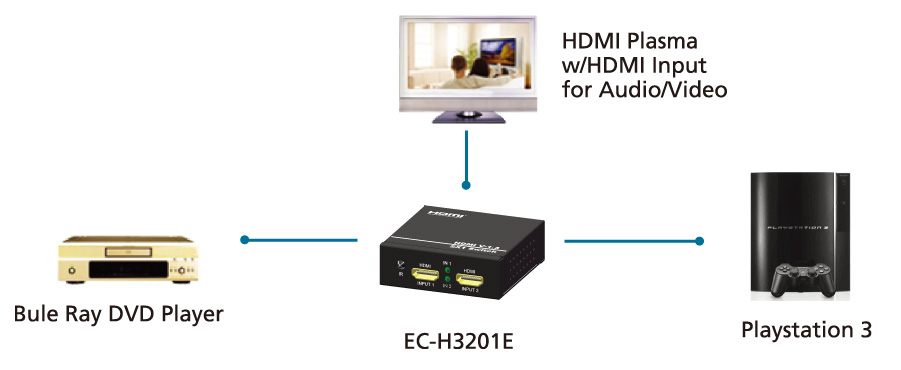

Application

¡P Switching from 2 Digital-Video (DVI) or Digital-Audio Visual (HDMI) Sources
¡P Digital TV, HDMI Flat Panel Monitors, HDTV
¡P DVD Players, Satellite Receivers, Set-Top Boxes
¡P Digital Projectors
¡P Audio Video Receivers
¡P Other HDMI-enabled devices
