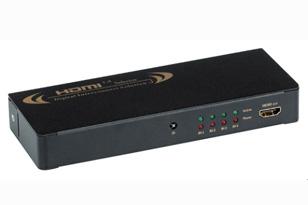

4 in 1 out HDMI V-1.3 Switch


  ¡P Video Amplifier Bandwidth: 2.25 GHz
  ¡P Single Link Range: 1080p ~ 1440p 2560 x 1440p
  ¡P Deep Color: 12 bits
  ¡P Vertical Frequency Range: 50 - 85 Hz
  ¡P Wide Frequency Range: 25MHz ~ 165MHz
  ¡P HDMI Input/Output Connector: TYPE A 19pin
  ¡P Power Consumption: 5 Watts (max.)
  ¡P Dimensions: 180 x 65 x 25 mm
  ¡P Weight: 250 g

  ¡P Supports 4 inputs to 2 single- or dual-link DVI/HDMI (HDMI V-1.3a) outputs.
  ¡P Compatible with HDMI V-1.3a or DVI-D, HDCP-enabled HDTVs.
  ¡P Each port supports HDMI or DVI inputs (both Video and Audio signals).
  ¡P Supports high video resolution up to 2560 x 1440 with 12 bit color depth.
  ¡P Supports 2.25Gbps signaling rate for 480i/p, 720i/p, 1080i/p and 1440i/p up to 12-bit color depth.

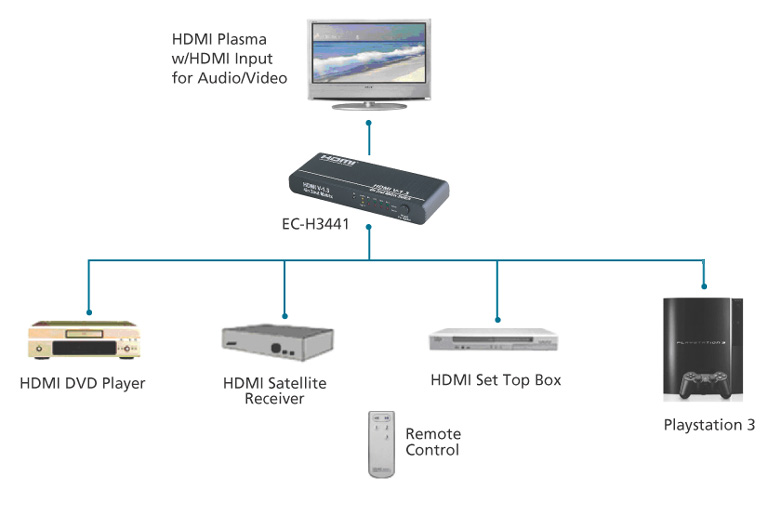

  ¡P Supports multiple HD displays for multiple sources, such as HD-DVD players, HDMI enabled
    PCs or Notebooks, Digital Projectors, PlayStation 3, A/V Receivers and Set Top Boxes.
  ¡P Encloses a Remote Control for operational flexibility, easy control and convenient use.
  ¡P Eliminates a hassle for disconnection andreconnection with different sources.

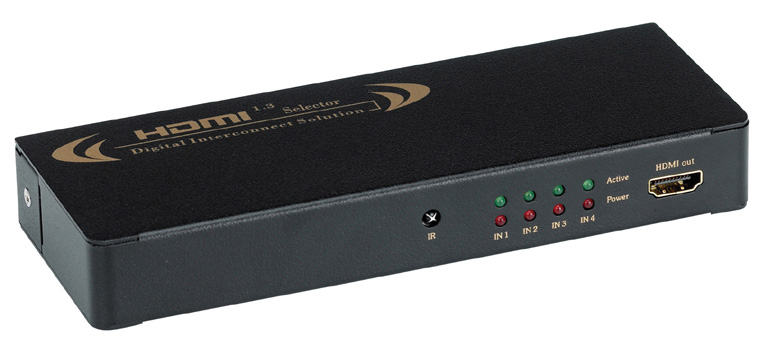

  ¡P LED indications for operation/power modes.
