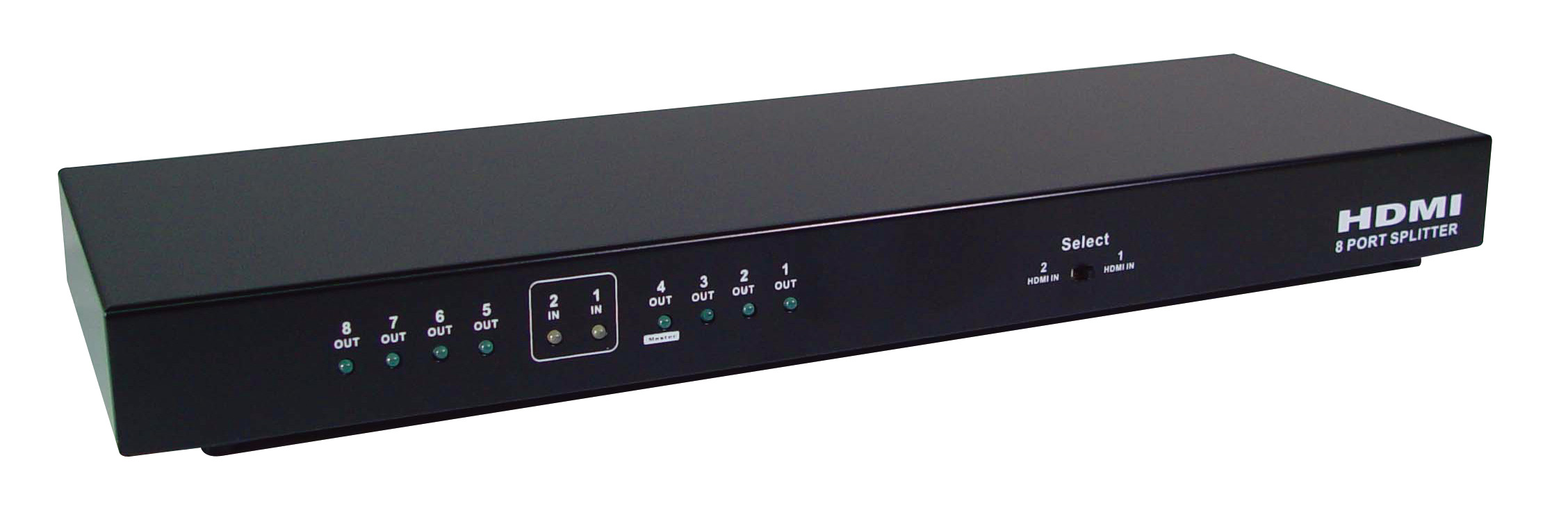

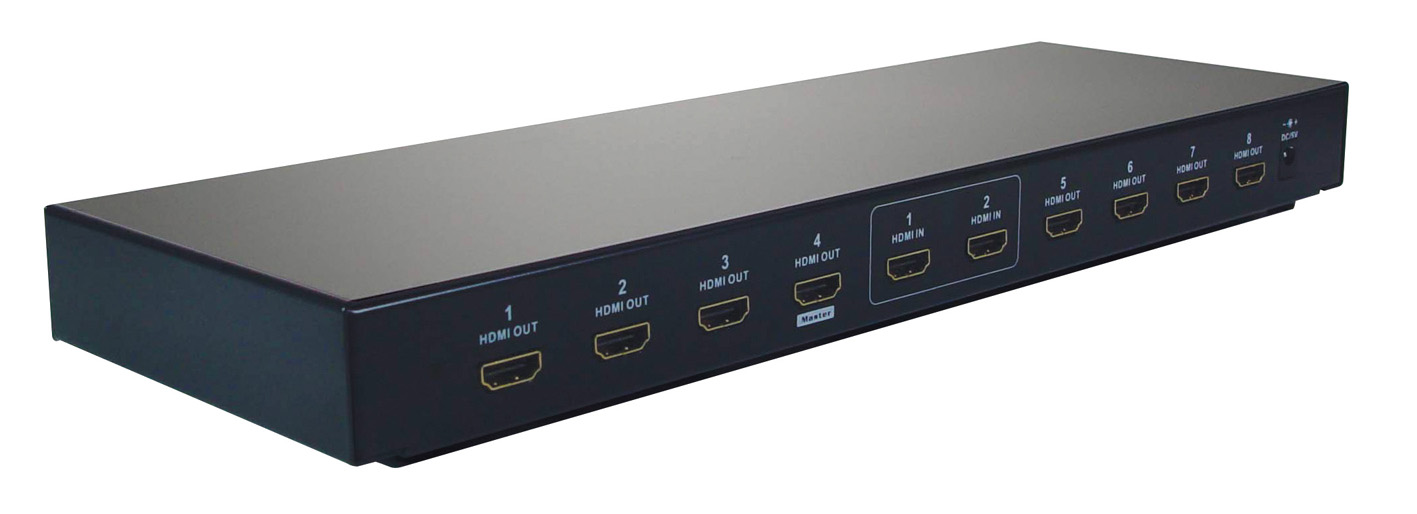

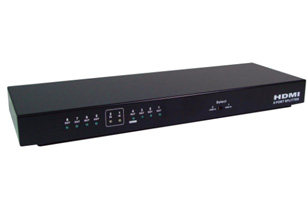

| 2in 8out HDMI V-1.3 Distribution Amplifier |
Introduction

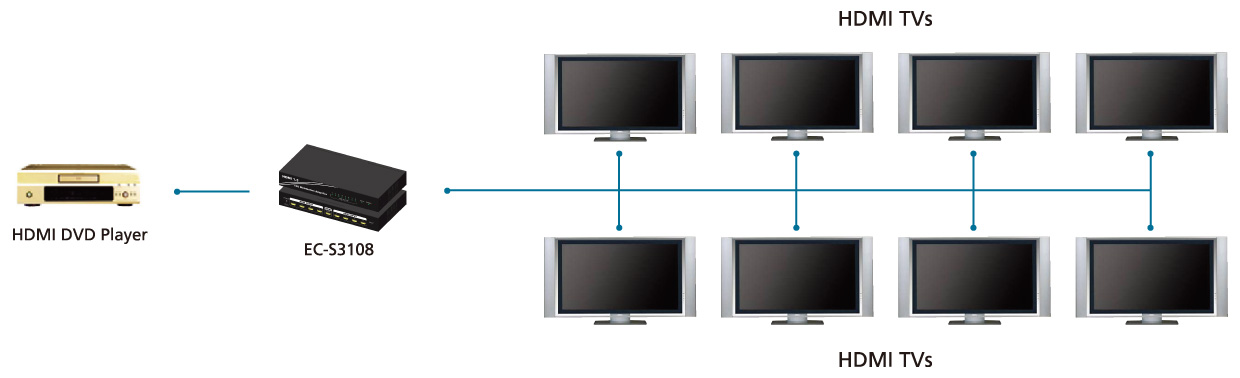

This HDMI Distribution Amplifier enables you to send high definition audio and video signals to 8 displays. It also allows HDMI interfaced set-top boxes, DVD players, D-VHS players and other HDTV devices to connect with two or more HDTV displays. The item acts as a hub that can accommodate multiple displays to create a larger distribution.
|
|
Specification
|
Model |
EC-S3208 |
|
Product |
1in-8out HDMI Distribution Amplifier |
|
HDMI Spec. Version |
1.3b |
|
HDMI Source Input Port |
2 |
|
Display Device Output Port |
8 |
|
Source Port Connector |
19 pin HDMI |
|
Display Device Port Connector |
19 pin HDMI |
|
HDCP Compliant |
Yes |
|
LED indication |
10 |
|
Single Link Range |
1080p / 1920 x 1200 |
|
Display Size ¡V HDMI |
1080p |
|
Display Size ¡V DVI |
WQXGA |
|
Deep color |
12 bits |
|
Video Bandwidth |
Up to 2.25GHz |
|
Vertical Frequency Range |
50 ~120 Hz |
|
Audio Performance |
SCAD, PCM (7.1ch), Dolby TrueHD& DTS-HD Master Audio |
|
Lip Sync |
Yes |
|
Power Consumption (max.) |
12 Watts |
|
Operation Temperature |
0¢XC to 70¢XC. |
|
Switching Power Adapter |
5V 3A |
|
Housing |
Metal |
|
Dimension (mm) |
300 x 125 x 35 mm |
|
Weight (g) |
860g |
|
HDMI Cables |
Optional | |
Features:
¡P Supports DVI specification 1.0
¡P Compliant with HDCP Rev 1.2 Specification and HDMI Specification 1.3b
¡P Supports One DVI/HDMI input and 8 DVI/HDMI outputs
¡P Supports conversion of HDMI signals to DVI signals
¡P Daisy-chainable and Cascadable to make more than 8 outputs
¡P Allows simultaneous display and Outputs are mirrored to eight HDMI displays
¡P Supports 480p, 720I, 720p, 1080i and 1080p resolutions with 12 bits color depth
¡P Supports SCAD, PCM (7.1ch), Dolby TrueHD& DTS-HD Master Audio
¡P Supports HDCP compliant devices
¡P Enhances video signals for distance up to 15M
¡P Supports BOTH Audio and Video signals.
¡P Ideal for video broadcasting: remote monitoring, presentations, educational facilities.
¡P Easy to install and simple to operate |
|
|
|
|
