Specifications
¡P Video amplifier bandwidth: 1.65GHz
¡P Single link range: 1,080P/1,920 x 1,200
¡P Vertical frequency range: 50 to 85Hz
¡P Wide frequency range: 25 to 165MHz
¡P HDMI input and output connector: type A 19-pin
¡P Power consumption: 15W (maximum)
¡P Dimensions: 180 x 65 x 25mm
¡P Shipping weight: 200g (two-port), 280g (four-port)
Features
¡P Compliant with HDCP Rev. 1.1 Specification and HDMI Specification 1.2.
¡P Supports One DVI / HDMI input and 2 DVI / HDMI outputs.
¡P Supports conversion of HDMI signals to DVI signals.
¡P Daisy-chainable and Cascadable.

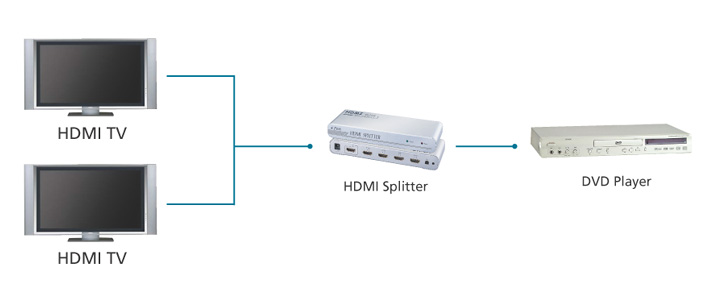

¡P Allows simultaneous display and outputs are mirrored to two HDMI displays.
¡P Supports 480p, 720i, 720p, 1080i and 1080p resolutions.
¡P Supports both Audio and Video signals.
¡P Easy to install and simple to operate.
¡P Ideal for video broadcasting, remote monitoring, presentations and educational purposes.
|
