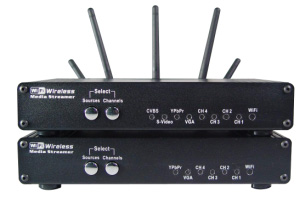

Part number |
EC-WVG2-T |
EC-WVG2-R |
|
Primary Processor |
Ralink RT2880F MIPS4KEc Core 266MHz |
Ralink RT2880F MIPS4KEc Core 266MHz |
|
Transceiver |
Ralink RT2820L |
Ralink RT2820L |
|
Standard |
IEEE 802.11n/b/g Standard |
IEEE 802.11n/b/g Standard |
|
Video |
Realtek RTD2660 |
Chrontel CH7013 |
|
Audio - |
Realtek Alc203 |
Realtek Alc203 |
|
Antenna Type |
External Dipole antenna 2dBi |
External Dipole antenna 2dBi |
|
Number of Selectable Channels
|
USA, Canada (FCC): 11 channels (2.412GHz~2.462GHz)
Europe (CE): 13 channels (2.412GHz~2.472GHz)
Japan (TELEC): 13 channels (2.412GHz~2.472GHz) |
USA, Canada (FCC): 11 channels (2.412GHz~2.462GHz)
Europe (CE): 13 channels (2.412GHz~2.472GHz)
Japan (TELEC): 13 channels (2.412GHz~2.472GHz) |
|
Data Rate
|
802.11n(up to 300Mbps)
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
802.11g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18Mbps, 12 Mbps, 9Mbps, 6 Mbps) |
802.11n(up to 300Mbps)
802.11b(11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps)
802.11g(54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18Mbps, 12 Mbps, 9Mbps, 6 Mbps) |
|
Output Power
|
802.11n : 14 +/- 1.5dBm @ normal temp
802.11b : 17 +/- 1.5dBm @ normal temp
802.11g : 14 +/- 1.5dBm @ normal temp |
802.11n : 14 +/- 1.5dBm @ normal temp
802.11b : 17 +/- 1.5dBm @ normal temp
802.11g : 14 +/- 1.5dBm @ normal temp |
|
Receiver Sensitivity
|
300Mbps @ -71dBm
11Mbps @ -86dBm
54Mbps @ -75dBm Typical |
300Mbps @ -71dBm
11Mbps @ -86dBm
54Mbps @ -75dBm Typical |
|
Memory
|
SDRAM : 8MB 32bits X2,ISSI IS42S32200E-
FLASH : 4MB,SST 39VF040 |
SDRAM : 8MB 32bits X2,ISSI IS42S32200E-6TL
FLASH : 4MB,SST 39VF040 |
|
Video
|
Input
1. CVBS
2. S-Video
3. Y/Pb/Pr
4. VGA |
Outputs
1. Y/Pb/Pr
2. VGA |
|
Format
& Frequency
|
Inputs
1. CVBS : 480i , 576i
2. S-Video : 480i , 576i
3. Y/Pb/Pr : 480i/p , 576i/p ,
720p (50/60Hz) , 1080i/p
(50/60Hz).
4. VGA : 640X480 , 800X600
, 1024X768 , 1280X768 ,
1280X1024 |
Output
1. Y/Pb/Pr :480p (60Hz)
576p (50Hz) 720p (60Hz)
2. VGA : 640x480 (60Hz)
800X600 (60Hz)
1024X768 (60Hz)
1280X768 (60Hz)
1280X1024 (60Hz) |
|
Transfer Frame Rate |
Frame rates depend on the WiFi bandwidth |
Frame rates depend on the WiFi bandwidth |
|
Audio Input |
Stereo with Earphone Jack |
Stereo with Earphone Jack |
|
PCM Encode |
48KHz 16-bit sampling |
48KHz 16-bit sampling |
|
Adapter Power |
DC 12V*1A |
DC 12V*1A |
|

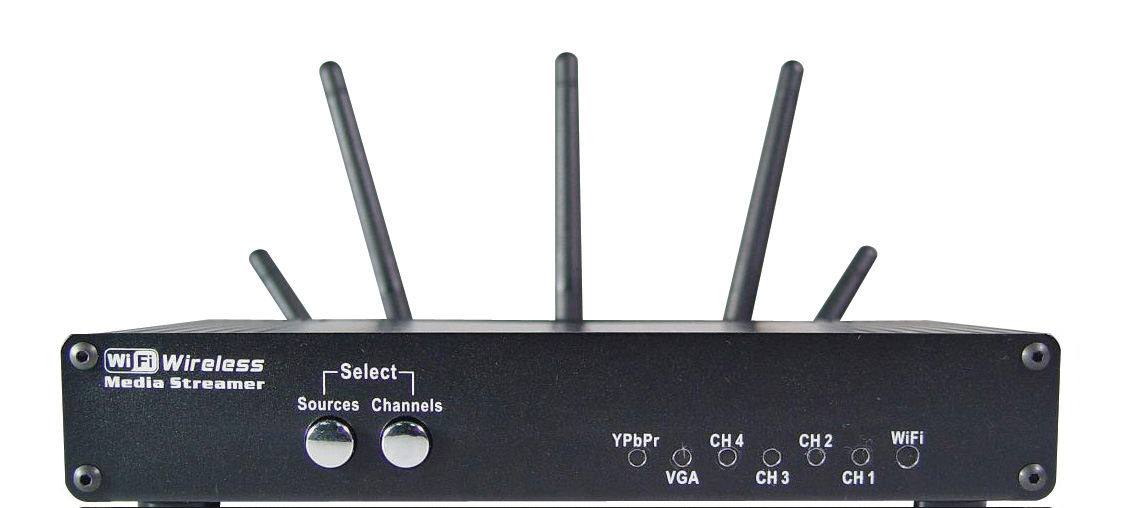

LED Indicator |
WLAN status / 4 Wi-Fi Channels / 4 Video Sources Input |
WLAN status / 4 Wi-Fi Channels / 2 Video Sources Output |
|
Environment Specifications (Total System) |
Operating Temperature: 0~40 ambient temperature ¢J
Operating humidity: 90% maximum (non-condensing) |
Operating Temperature: 0~40 ambient temperature ¢J
Operating humidity: 90% maximum (non-condensing) |
