HDMI Over Cat. 5e/6 Extender

The HDMI Extender boosts or extends the video/audio transmission distance up to 60 meters in HDTV 1080i format, using two CAT-5e/6 cables. This unit provides a convenient and cost effective solution to transmit high quality audio visual signals to HDTVs at a remote location.

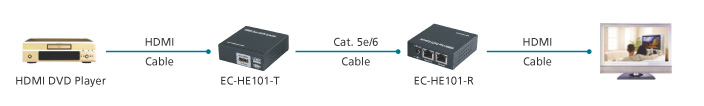

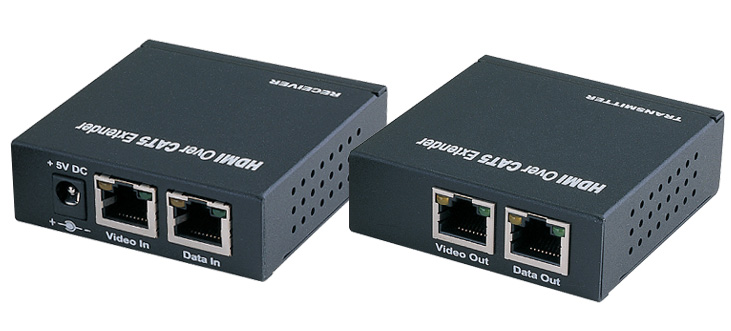

The HDMI extender includes two units: transmitter and receiver. The receiver is responsible for equalizing the sent TMDS multimedia data. The transmission distance between sending and receiving can be up to 60 meters at 1080i and 40 meters at 1080p. With equalization control switch on the receiver, users can adjust an equalization level to optimize the transferred signals between the source and its destination.

  ¡P Video Bandwidth: 10.2 Gbps (HDMI 1.3)
  ¡P Input TMDS signal: 1.2 volts (peak-to-peak)
  ¡P Input DDC signal: 5 volts (peak-to-peak)
  ¡P HDMI Connector: 19 pin type female
  ¡P Power Supply: 5V 2A
  ¡P Power Consumption: 10 Watts (max)
  ¡P RJ-45 Connector: 2 indication LEDs
  ¡P Dimensions: 70x 60 25mm (Lx W x H)
  ¡P Weight: 180g

  ¡P HDMI V-1.2a and 1.3b compliant
  ¡P Extends the transmission distance up to 60 meters from the source at 1080i or 720p
  ¡P Extends the transmission distance up to40 meters from the source at 1080p
  ¡P HDCP compliant
  ¡P Minimizes the cable skew by adjustable equalization
  ¡P A cost effective solution for signal extension.
