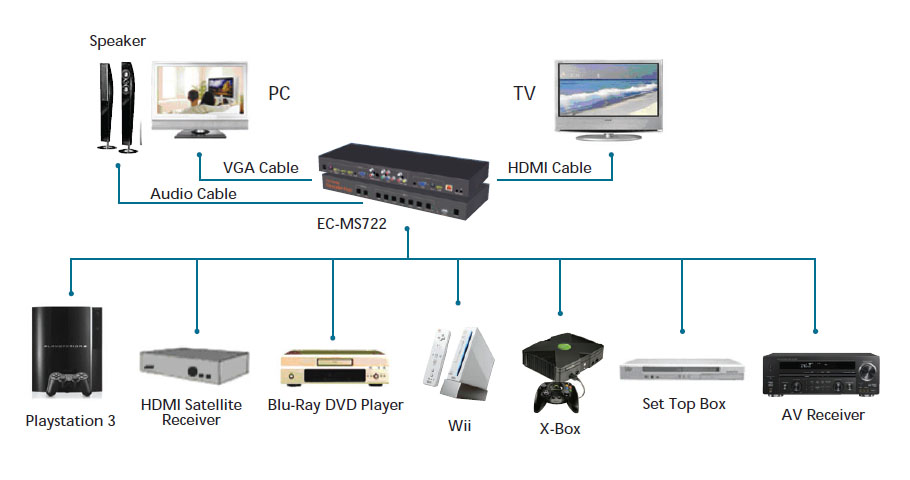

This product is designed to work as an unique media upscaler hub that allows analog and digital devices to be integrated eamlessly into the modern home theater system. It enables to upscale the different video/audio signals (HDMI +Display Port + YPbPr + CVBS + S-Video + VGA) into the HDMI signals for the full HD video (1080p) and audio effect or keep the analog VGA output. With the IR remote provided, you can easily switch between different kinds of video/audio formats to the most up-to-date HDMI (1080p) images and surround sound.

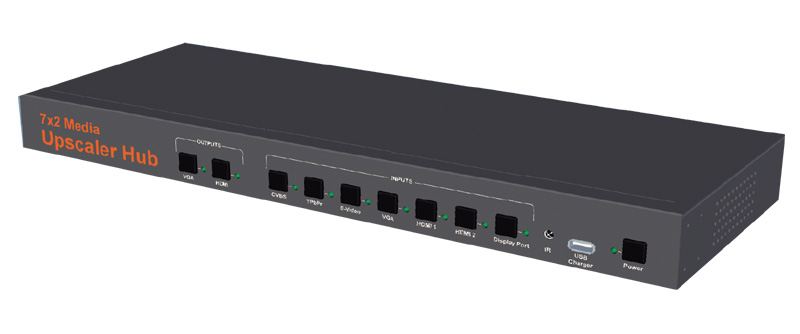

7x2 Media Upscaler Hub

HDMI Version


HDCP Compliant

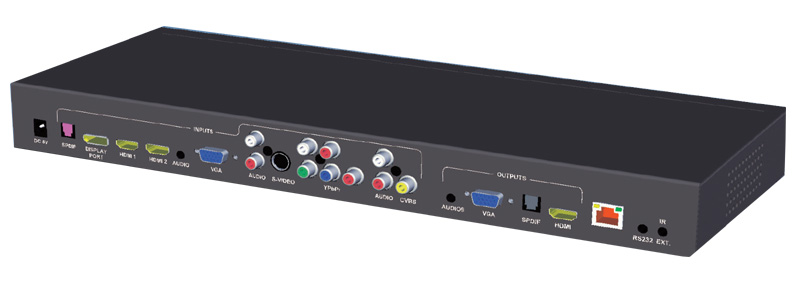

HDMI Input Port

2 x HDMI 19pin Jack

Display Port Input

1 x DP Jack

YPbPr Input Port

3 x Composite + Line-in/Line-out (Audio)

CVBS Input port

2 x RCA + Line-in/Line-out (Audio)

S-Video Input Port

S-Video + Line-in/Line-out (Audio)

VGA Input Port

HD15 Female + 3.5mm Audio Jack

Display Device Output Port

HDMI + HD15 Female

Input Device Selection

IR Remote Control / Switch buttons

Device Port LED


Link Range - Inputs
                      - Outputs

480i/p, 576i/p, 720i/p, 1080i/p
480i/p, 576i/p, 720i/p, 1080i/p

Deep Color

12 bits

Video Bandwidth

Up to 2.25GHz

Vertical Frequency Range

50 ~60 Hz and audio format 5.1ch

Power Consumption (max.)

15 Watts

Operation Temperature

0¢XC to 70¢XC.

Switching Power Adapter

5V 3.0A



Dimension (mm)

420 x 160 x 44mm

Weight (g)




• Supports Various video inputs - HDMI, Display Port,CVBS, S-Video, YPbPr and VGA.
• Supports video outputs - HDMI and VGA.
• Supports HDMI 1.3, Display Port 1.1, DVI 1.0 with Integrated HDCP.
• Full HD video capability up to 1080p in/out support.
• Support HDMI 1.3, 12bit Deep color.
• Video WUXGA @ 60Hz capture support.
• Support 5.1 analog/digital output audio stream.
• Enables to convert PC Video/Audio, VGA, CVBS,YPbPr, S-Video to HDMI Full HD.
• Supports link speeds of up to 2.25Gbps (link clock rate of 225MHz) signaling rate for 480i/p, 720i/p,1080i/p
   with 12-bit color depth.
• Supports graphics input up to 1920 x 1080 @60Hz.
• Enable to upgrade a new software version via SerialRS-232 port.
• Rack-mountable and easy operation with Manual Switching buttons and/or Remote Control.
