6x2 Multi-Media Upscaler Switch(EC-MS622)



Introduction

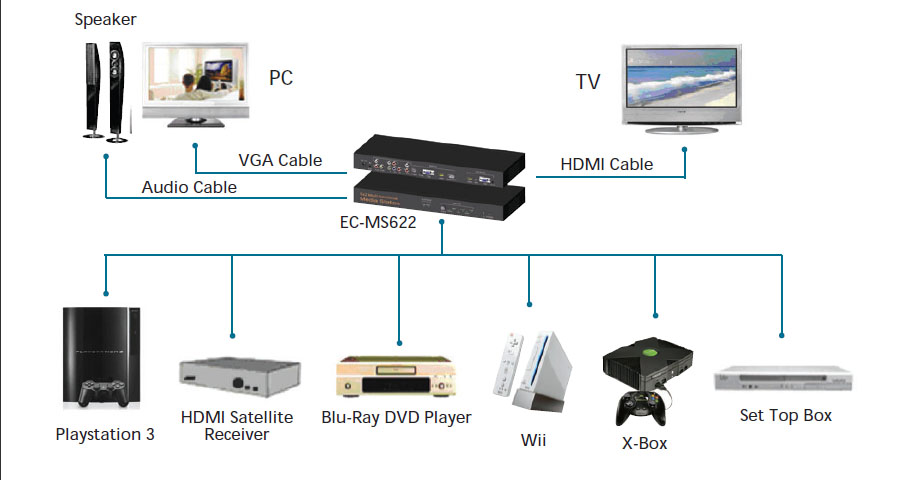

Ever Connect is delivering an unique multi-media upscaler swttch that allows analog and digital devices to be integrated seamlessly into the modern home theater system.  It enables to upscale the different video/audio signals (HDMI +Display Port + YPbPr + CVBS + S-Video + VGA) into the HDMI signals for the full HD video (1080p) and audio effect or keep the analog VGA output.  With the IR remote provided, you can easily switch between different kinds of video/audio formats to the most up-to-date HDMI (1080p) images and surround sound.

It¡¦s fully compliant with HDMI 1.3, HDCP 1. 2 and backward compatible to DVI1.0 Specifications.  This supports color depth of up to 36bits (12 bits/color) and ensures robust transmission of high-quality umcompressed video content, along with state-of-the-art uncompressed and compressed digital audio content such as DTS-HD and Dolby TrueHD in DVD/HD-DVD/Blu-ray players and set-top boxes.

Specification

Product

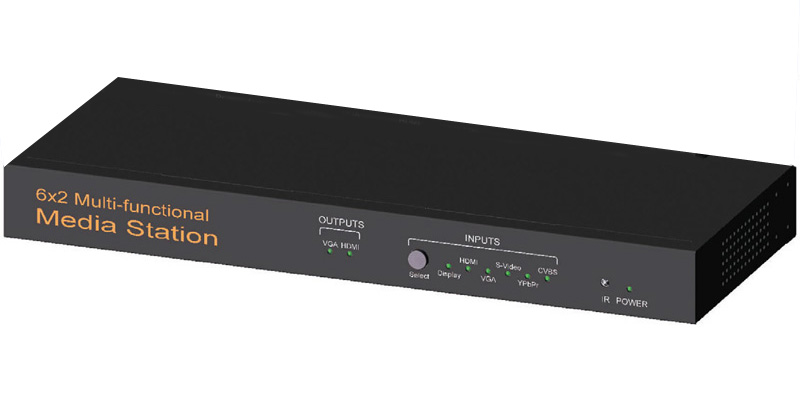

6x2 Multi-Functional Media Station

HDMI Version

1.3b

HDCP Compliant

Yes

HDMI Input Port

1

Display Port Input

1

YPbPr Input Port

3 x Composite + Line-in/Line-out (Audio)

CVBS Input port

2 x RCA + Line-in/Line-out (Audio)

S-Video Input Port

S-Video + Line-in/Line-out (Audio)

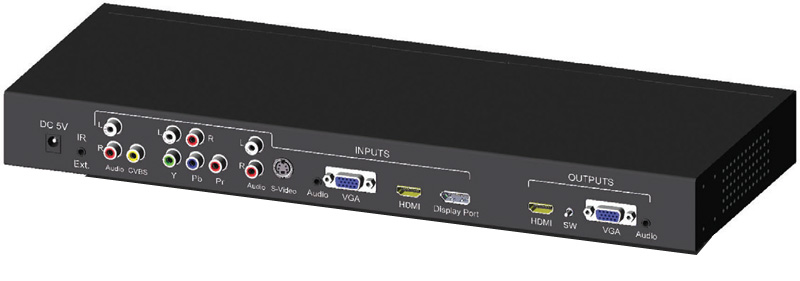

VGA Input Port

HD15 Female + 3.5mm Audio Jack

Display Device Output Port

HDMI + HD15 Female

Input Device Selection

IR Remote Control

Device Port LED

8

Link Range - Inputs
                      - Outputs

480i/p, 576i/p, 720i/p, 1080i/p
480p, 576p, 720p, 1080p

Video Bandwidth

Up to 2.25GHz

Vertical Frequency Range

50 ~60 Hz

Switching Mode

Manual Buttons or IR Remote Control

Power Consumption (max.)

15 Watts

Operation Temperature

0¢XC to 70¢XC.

Switching Power Adapter

5V 3.0A

Housing

Metal

Dimension (mm)

420 x 160 x 44mm

Weight (g)

2500g

Cables

Optional

Features
• Video Input - Supports HDMI, Display Port, CVBS, S-Video, YPbPr and RGB
• Video Output - Supports HDMI and VGA
• Sends six video inputs to the HDMI or VGA display
• Enables to convert PC Video/Audio, VGA, CVBS, YPbPr, S-Video to HDMI Full HD
• Supports link speeds of up to 2.25Gbps (link clock rate of 225MHz) signaling rate for 480i/p,
   720i/p, 1080i/p with 12-bit color depth
• Supports various video input interface - digital video standards such as
   (1) 24/30/36 bit RGB/YCbCr  -  4:4:4
   (2) 16/20/24 bit YCbCr  -  4:2:2
   (3) 8/10/12 bit YCbCr  -   4:2:2   (CCIR-656)
   (4) 12/15/18 bit double data rate interface for RGB/YCbCr  -  4:4:4
• Supports 480i/p, 576i/p, 720i/p, 1080i/p
• Supports graphics input up to 1280 x 1024@60Hz
• Digital Video Output ¡V 8/10 bit dual LVDS up to 1920x1080@60Hz, 24bit RGB out
• Supports both down and up scaling
• Enable to upgrade a new software version via Serial RS-232 port
• Rack-mountable and easy to be operated by remote control
• LED indications for operation/power modes
• Remote Control supplied
