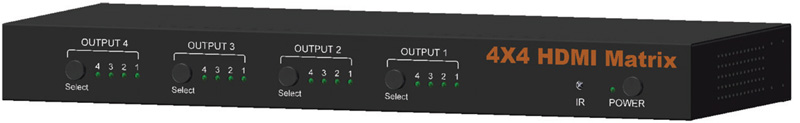

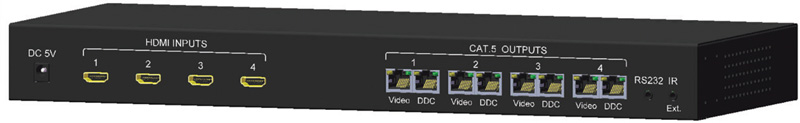

4x4 HDMI Cat. 5 Matrix Switch (EC-H3424-C5) |
|

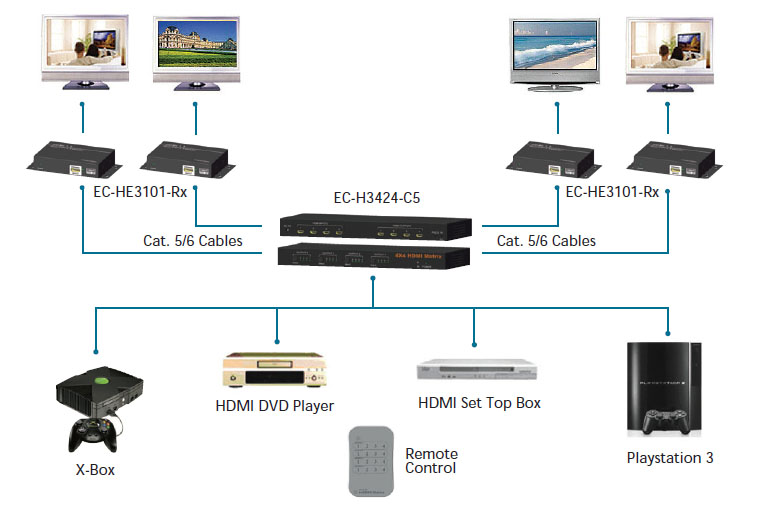

Introduction This 4x4 HDMI Cat.5 Matrix Switch is designed to work as a true matrix switch for multiple sources and displays. Each output allows you to select any of 4 input sources at any time. Every source is accessible at all times by any displays, using manual switch buttons or the IR remote control provided.
The Matrix switch lets any input to be routed to any output; or the same input to be routed to all outputs or any combination. Full High-Resolution 1080p signals can be sent through from a distance of 50M (max.) over inexpensive Cat. 5e/6 cables.
The switch completely eliminates the need to move around video input and output cables. RS-232 control allows the switch to be upgraded by any computerized control software. This matrix switch provides you operational flexibility, easy control and convenience. |
|
Features • Compatible with HDMI V-1.3b or HDCP V-1.2 • Sends up to four video inputs to any four remote HDMI displays • Supports up to 3.0Gbps signaling rate for 480i/p, 720i/p, 1080i/p with 12-bit color depth • Extends video up to 50M at 1080p over CAT-5/6 cables • Enable to upgrade a new software version via Serial RS-232 port • Rack-mountable • LED indications for operation/power modes • Encloses a Remote Control for operational flexibility, easy control and convenient use • Eliminates a hassle for disconnection and reconnection with different sources • ROHS Compatible and 260¢XC Reflow Rated | Specification
Product |
4x4 HDMI Cat. 5 Matrix Switch (EC-H3424-C5) |
HDMI Version |
1.3b |
HDMI Source Input Port |
4 |
Display Device Output Port |
8 (Cat. 5) |
Source Port Connector |
19 pin HDMI |
Display Device Port Connector |
19 pin HDMI |
HDCP Compliant |
Yes |
Display Device Selection |
IR Remote Control |
Device Port LED |
16 |
Single Link Range - TV - PC |
1080p / 1920x1200 VGA, SVGA, XGA, SXGA & WUXGA (1600x1200) |
Deep Color |
12 bits |
Video Bandwidth |
Up to 3.0GHz |
Vertical Frequency Range |
50~120 Hz |
Audio Performance |
SCAD PCM (7.1ch), Dolby Digital, True HD DTS-HD & Master Audio |
Lip Sync |
Yes |
Switching Mode |
Manual Buttons or IR Remote Control |
Power Consumption (max.) |
15 Watts |
Operation Temperature |
0¢XC to 70¢XC. |
Switching Power Adapter |
5V 3.0A |
Housing |
Metal |
Dimension (mm) |
420 x 160 x 44mm |
Weight (g) |
2500g |
HDMI Cables |
Optional | | | | | | |
|
|
|
