4in 1out HDMI Switch ¡V w/Auto Sensing


This 4-port high-definition multimedia interface (HDMI) switch allows up to 4 DVI or HDMI ports to be switched to a single display terminal with the use of either the remote control unit or the manual switching buttons on its front panel.  This HDMI Switch provides an interface in consumer electronics that can carry both uncompressed HD video and uncompressed multi-channel audio in all HD formats including 720p, 1080i/p and even upcoming 1440p with the signal transfer rate of 3.4Gbps.

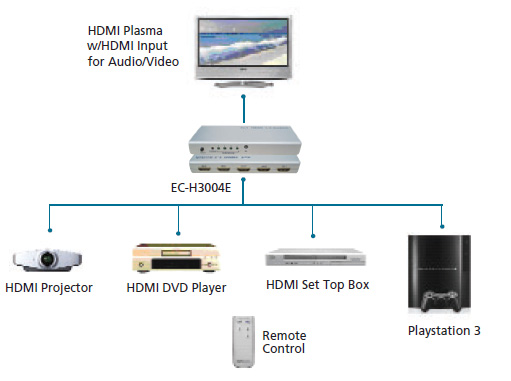

There is no more hassle of disconnecting and reconnecting to view all different sources.  It enables you to maximize your home theater system.  It works well with HD-DVD players, HDMI enabled PCs or Notebooks, Digital Projectors, PlayStation 3, Satellite Receivers anD Satellite Set-Top Boxes that link to a HDMI display.

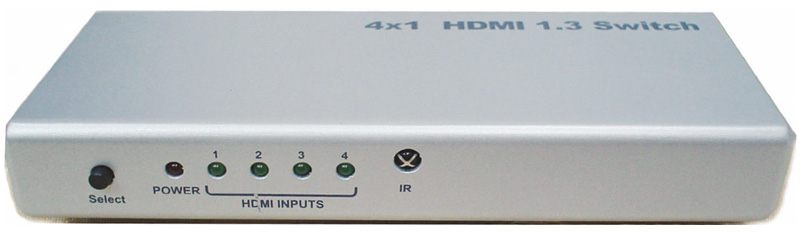

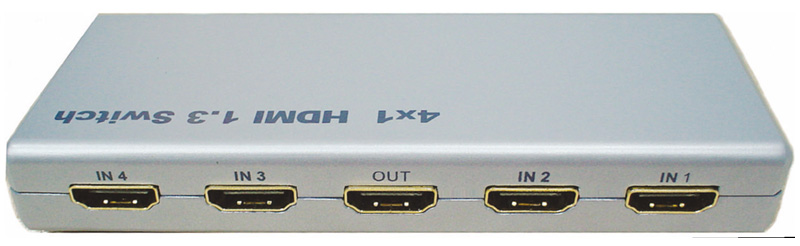

4in-1out HDMI Switch

HDMI Source Input Port


Display Device Output Port


Source Port Connector

19 pin HDMI

Display Device Port Connector

19 pin HDMI

HDCP Compliant


Device Port LED


Single Link Range

Up to 2560 x 1440

Display Size ¡V HDMI

1080p ~1440p

Display Size ¡V DVI


Deep Color

12 bits

Video Bandwidth

Up to 3.4GHz

Vertical Frequency Range

50 ~120 Hz

Audio Performance

SCAD, PCM (7.1ch), Dolby TrueHD& DTS-HD Master Audio

Lip Sync


Remote Control


Power Consumption (max.)

15 Watts

Operation Temperature

0¢XC to 70¢XC.

Switching Power Adapter

No need



Dimension (mm)

Approx. 130 x 55 x 18 mm

Weight (g)


HDMI Cables


• Supports 4 inputs to 1 single- or dual-link DVI/HDMI
• Compatible with HDMI V-1.3a or DVI-D, HDCP-enabled HDTV
• Each port supports HDMI or DVI inputs
• Supports high video resolution up to 1920 x 1200 including 1080i/p
• Supports Both Video and Audio Signals
• Supports 3.4Gbps signaling rate for 480i/p, 720i/p and 1080i/p up to 12-bit color depth
• Ensures the high definition signal is sent through without any signal loss
• Plug and Play, No software installation is required.
• Easy to install and simple to link any four sources to one HDTV displays
• Supports multiple HD displays for multiple sources, such as DVD Players and Satellite
   Receivers, Digital Projectors, A/V Receivers, Set Top Boxes
• Encloses a Remote Control for operational flexibility, easy control and convenient use
• Eliminates a hassle for disconnection and reconnection of multiple video sources
• LED indications for operation/power modes
• Optimizes system performance through 5-meter or longer HDMI cables.
