HDMI V-1.3 CAT.5e/6 EXTENDER



Introduction

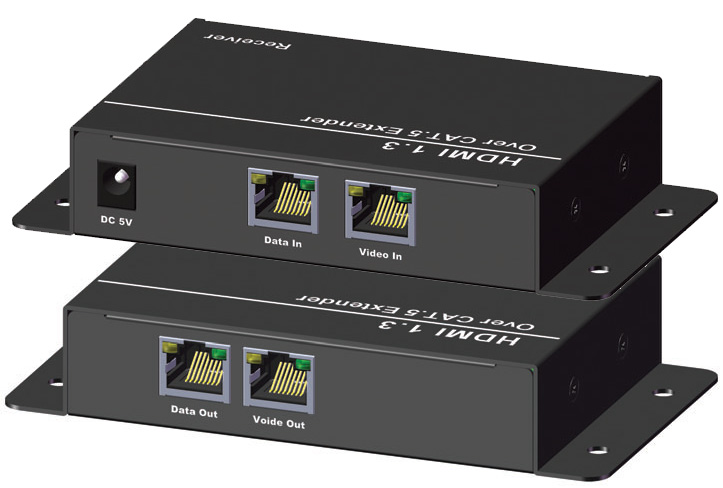

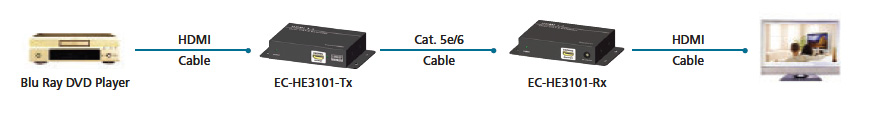

This HDMI extender includes two units: transmitter and receiver. The transmitter is used to
capture the input HDMI/DVI signals and carries the signals through two CAT-5/5e/6 network

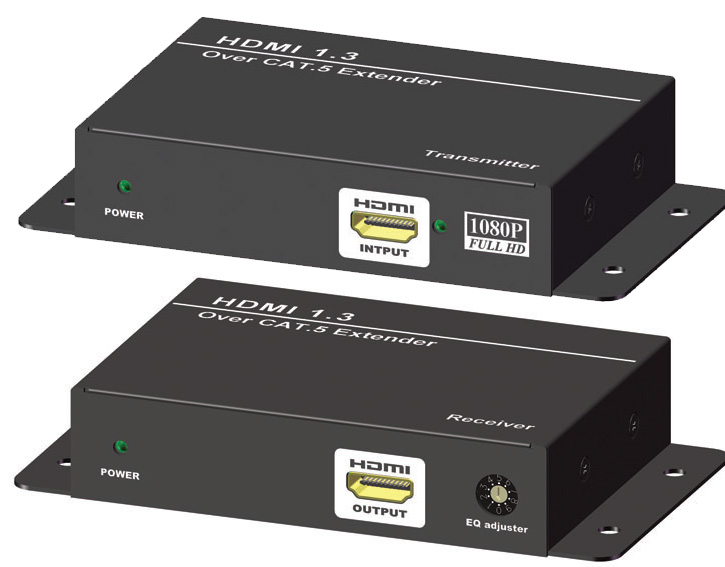

cables. The receiver is responsible for equalizing the sent TMDS multimedia data. The transmission distance between sending and receiving can be up to 60 meters at 1080i and 45 meters at 1080p. With equalization adjuster on the receiver, users can adjust an equalization level to optimize the transferred signals between the source and its destination.

Specification
• Video Bandwidth: 10.2 Gbps (HDMI 1.3b)
• Input TMDS signal: 1.2 volts (peak-to-peak)
• Input DDC signal: 5 volts (peak-to-peak)
• HDMI Connector: 19 pin type female connector
• Power Supply: 5V 2A
• Power Consumption: 20 Watts (max)
• Link Connector: RJ-45 Shielded
• Weight: 500g (Transmitter + Receiver)
• Dimensions: 108 x 75 x 25mm (L x W x H)

Features
• Extends high definition displays up to 150 feet(45 meters) from the source at 1080p
• Extends high definition displays up to 200 feet(60 meters) from the source at 1080i
• Improved compensation for cable skew
• Eliminates equipment noise in the viewingenvironment
• Supports resolutions up to 1080p and 1920 x 1200
• Audio and video are transmitted digitally over two Cat-5, Cat-5e,
   or Cat-6 cable with no signal loss
• HDMI 1.3b / HDCP 1.2 compliant
