HDMI 1.3 Over Fiber Extender (EC-HF3101-300)

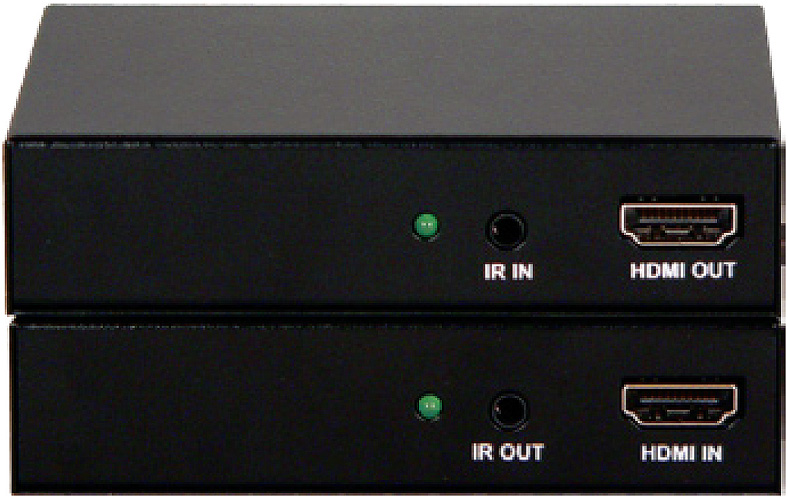

The HDMI over Fiber Extender kit boosts or extends the video/audio transmission distance up to 300 meters in HDTV 1080p format, using a Fiber Optic cable.  The HDMI extender includes two units: transmitter and receiver. The transmitter is used to capture the input HDMI/DVI signals and carries the signals through one fiber optic cable.  The receiver is responsible for equalizing the sent TMDS multimedia data. The transmission distance between sending and receiving can be up to 300 meters at 1080p, also supporting unique crystal fiber which looks a transparent fishing cord, easily deployed at your home without damaging existing decoration.  The product fits well with your home entertainment sharing application.

• Video Bandwidth: 10.2 Gbps (HDMI 1.3b)
Input TMDS signal: 1.2 volts (peak-to-peak)
Input DDC signal: 5 volts (peak-to-peak)
HDMI Connector: 19 pin type female connector
Power Supply: 5V 2A
Power Consumption:  20 Watts (max)
Link Connector:  50/125 Multi-Mode Fiber
Weight:  500g (Transmitter + Receiver)
Dimensions: 101mm x 75mm x 24mm (L x W x H)

• Extends high definition displays up to 300 meters from the source at 1080p
Supports resolutions up to 1080p/36bits@60Hz
Audio and video are transmitted digitally over fiber Optic cable with no signal loss
HDMI 1.3b / HDCP 1.2 compliant with 12bit color depth
