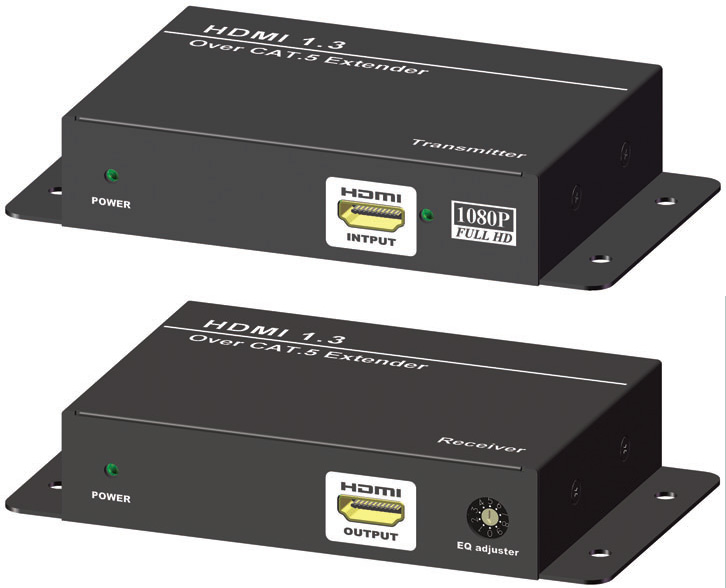

HDMI 1.3 Over Cat.5/6 Split Extender (EC-HE3102-SP)

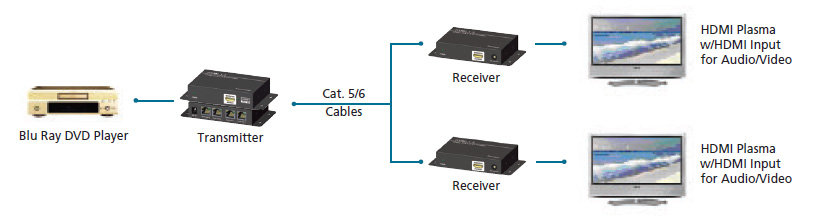

The HDMI Split Extender kit boosts or extends the video/audio transmission distance up to 45 meters in HDTV 1080p format to two displays at the same time, using CAT.5e/6 cables.  This unit provides a convenient and cost effective solution to transmit high quality audio visual signals from the source to HDTVs at a remote location and/or when integrating with several home theater devices/equipments.

• Video Bandwidth: 10.2 Gbps (HDMI 1.3b)
Input TMDS signal: 1.2 volts (peak-to-peak)
Input DDC signal: 5 volts (peak-to-peak)
HDMI Connector: 19 pin type female connector
Power Supply: 5V 2A
Power Consumption:  20 Watts (max)

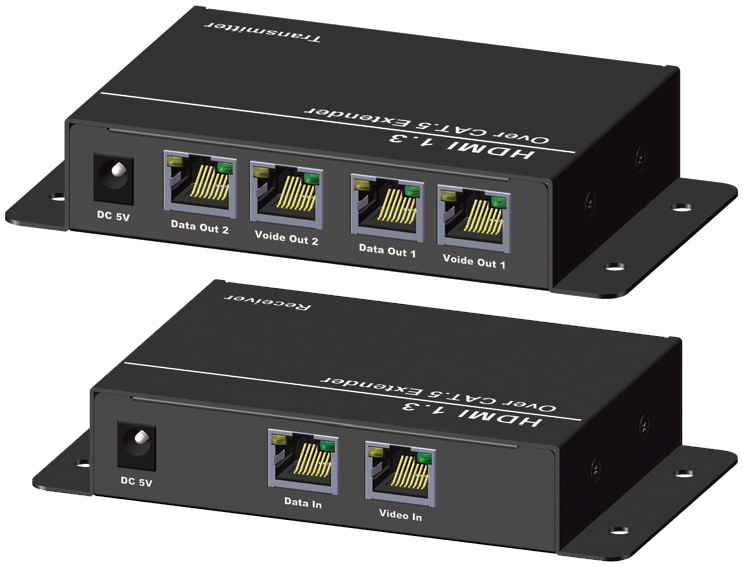

Link Connector: RJ-45 Shielded with 2 indication LEDs
Weight:  500g (Transmitter + Receiver)
Dimensions: 108mm x 75mm x 25mm / 4.2¡¨ x 3¡¨x 1¡¨ (L x W x H)

• Extendable to transfer the signals to two Displays
Extends high definition displays up to 45 meters from the source at 1080p
Extends high definition displays up to 60 meters from the source at 1080i
Supports resolutions up to 1080p, 2K, and 1920 x 1200
HDMI V-1.3b compatible ¡V 2.25GHz and 12 bit color depth.
Audio and video are transmitted digitally over two Cat-5, Cat-5e,
  Cat-6 cable with no signal loss
HDMI 1.3b / HDCP 1.2 compliant
Minimizes the cable skew by adjustable equalization knob
A cost effective solution for signal extension.
