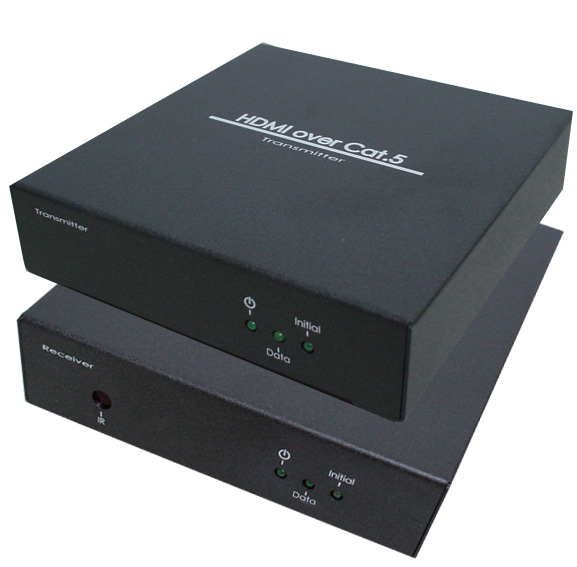

| HDMI Over IP Extender (EC-HE3115-IP) |
|
|
|
Introduction
The HDMI Cat. 5 IP Extender kit boosts or extends the video/audio transmission distance up to 300 meters in HDTV 1080p format to the display(s), using single CAT.5e/6 cables. This unit provides a convenient and cost effective solution to transmit high quality audio visual signals from the source to HDTVs at a remote location and/or when integrating with several home theater devices/equipments.

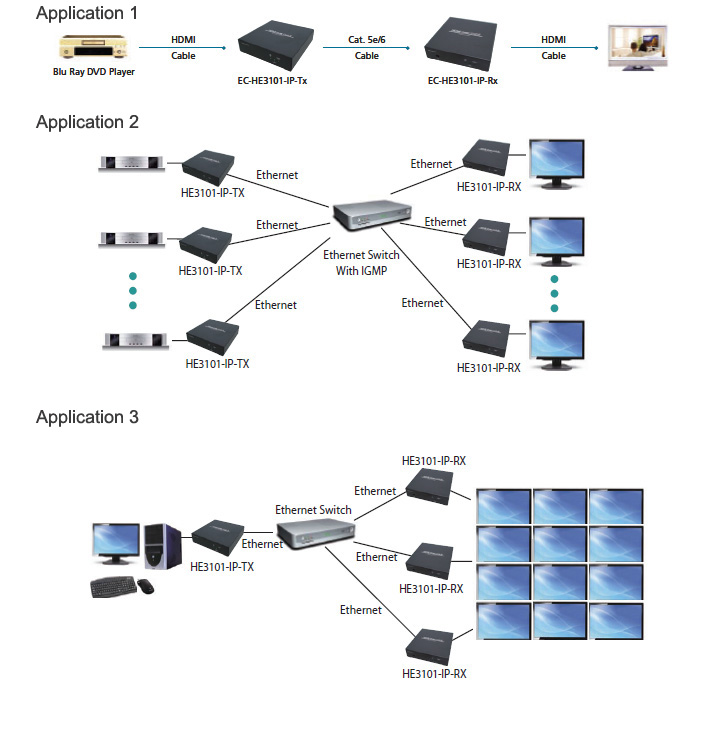

This item is applicable to the following:
1) one to one signal extension
2) Video/Audio Broadcasting
3) Digital Signage
4) TV Wall
5) Multi-Casting | |
Features
• Compliant with HDMI V-1.3
• Supports high video resolution 1080p, 2K, and 1920 x 1200
• LED indications for operation modes
• Audio and video are digitally transmitted over ONE Cat-5, Cat-5e, or Cat-6 cable
• Extends high definition displays up to 300 meters from the source at 1080p
• Delivers video/audio signal through a single standard Ethernet cable
• High Speed compression to guarantee low latency and excellent picture quality
• The most cost effective solution for one-to-one, one-to-many, and many-to-many signal
extension.
• Supports Refresh Rate: 24Hz, 30Hz, 60Hz
• Audio -> System: Stereo L/R
Sampling Rate: 48KHz
Resolution: 16bits
• Safety Certification: CE / FCC
Specifications
|
Product |
HDMI Over Single Cat. 5 IP Extender (EC-HE3115-IP) |
|
HDMI Version |
1.3b |
|
HDMI Source Input Port |
1 |
|
HDMI Sink Output Port |
1 |
|
Source Port Connector |
19 pin HDMI |
|
Display Device Port Connector |
19 pin HDMI |
|
HDCP Compliant |
Yes |
|
LED Indication |
2 |
|
Resolution |
1920x1200@60Hz (digital), 1600x1200@60Hz (analog) |
|
Deep Color |
36 bits |
|
Video Bandwidth |
Up to 10.2GHz |
|
Vertical Frequency Range |
50 ~60 Hz |
|
Audio Performance |
Stereo L/R |
|
Lip Sync |
Yes |
|
Power Consumption (max.) |
10 Watts |
|
Operation Temperature |
0¢XC to 70¢XC. |
|
Switching Power Adapter |
5V 2.0A |
|
Housing |
Metal |
|
Dimension (mm) |
108mm x 75mm x 25mm / 4.2¡¨ x 3¡¨x 1¡¨ (L x W x H) |
|
Weight (g) |
1kg |
|
|
|
|
