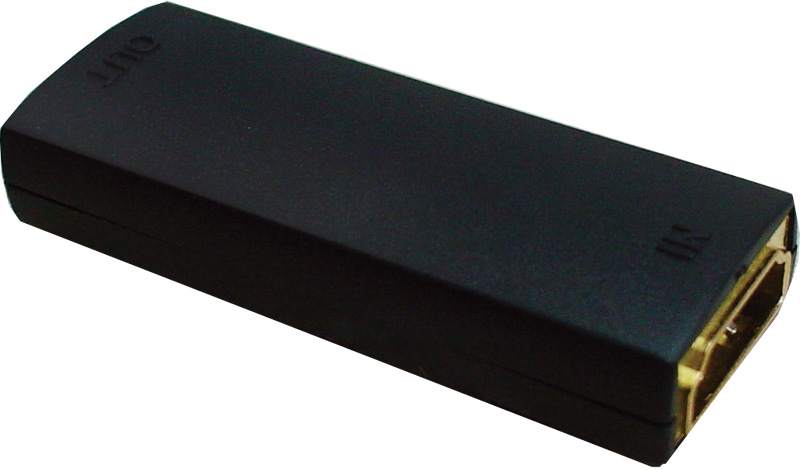

HDMI V-1.3 Equalizer Adapter (EC-H11)


HDMI Equalizer Adapter is used for compensating the loss of transmission signals. The product allows you to extend the transmission length over a 28awg HDMI Cable and improve the signal quality so as to receive the perfect images on TV after a long signal transmission.  It¡¦ enables you to relocate your DVD Player or Satellite Receiver to a safe, quiet and clutter-free environment and eliminate noise in your home theater environment.


Model No.

HDMI Equalizer / Booster

HDMI Version

HDMI V-1.3b

Input/Output connector

HDMI Type A 19pin

Video Bandwidth

2.25GHz  - Single Link

HDCP Function

HDCP Compliant

Single Link Range

1920 x 1080 @ 60Hz

Vertical Frequency Range

50Hz, 60Hz, 70Hz, 75Hz

Cable Length (Max.)

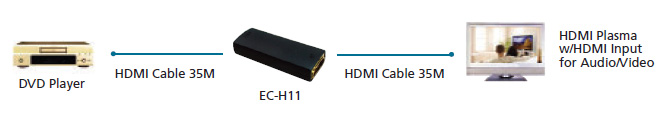

60M (output side: Max. 5M + input side cable length)

Power Adapter

Bus Powered


Plastic in Black


52 x 18 x 10 mm

Net Weight



CE, FCC Class-B

  ¡P Carries and transfers digital video signals over long 28awg HDMI Cables
  ¡P Extends digital display screen away from the HDTV Source
  ¡P Maintains multiple high definition resolutions up to 1080p or 1920 x 1200 for computers
  ¡P Restores / Cleans up HDMI Signals
  ¡P Allows you to customize the HDMI cables 60M (without DC power Supply)
  ¡P Installs in seconds and allows you to operate very easily
  ¡P Stores near a display device for maximum effectiveness
