| HDMI Over Cat.5 Extender (EC-HE4115) |
|
|
|
Introduction

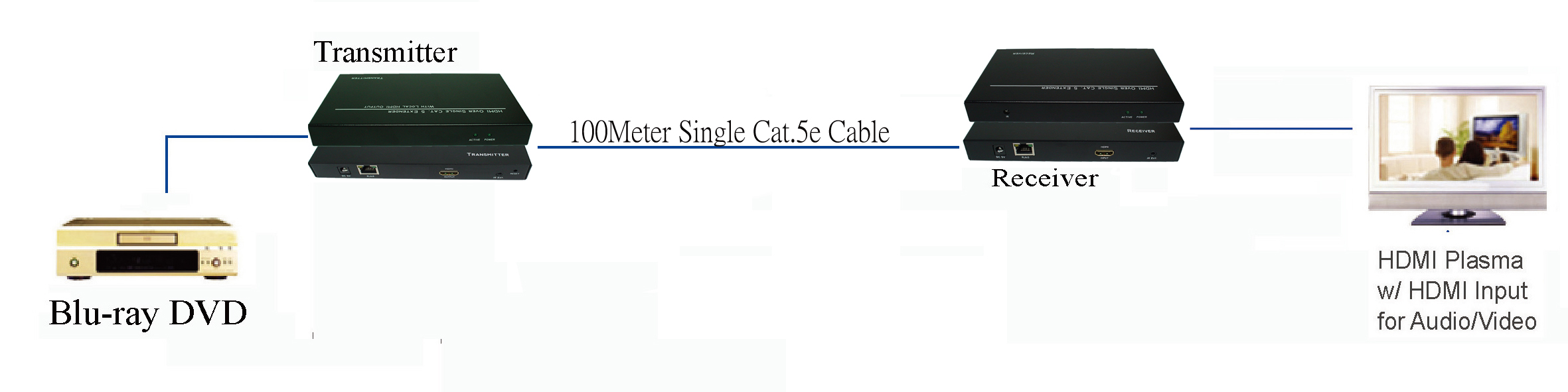

The HDMI Cat. 5 Extender (Ver-1.4) kit is designed to be HDMI 1.4 compatible, enabling to transfer high quality, wired connectivity of uncompressed High-Definition (HD), Multimedia content (video+audio) over single Cat. 5/5e/6 cable. This extender allows for extension of the video/audio transmission distance up to 100 meters in HDTV 1080p, (even 4kx2k and 3D format). This unit provides a convenient and effective solution to transmit high quality audio visual signals from the source to HDTVs at a remote location and/or when integrating with several home theater devices/equipments.
|
|
Specification
|
Product |
HDMI Over Single Cat. 5 Extender (EC-HE4115) |
|
HDMI Version |
1.4a |
|
HDMI Source Input Port |
1 |
|
HDMI Sink Output Port |
1 |
|
Source Port Connector |
19 pin HDMI |
|
Display Device Port Connector |
19 pin HDMI |
|
HDCP Compliant |
Yes |
|
LED Indication |
3 |
|
Resolution |
1080p / 1920x1200 / 4K x 2K |
|
Deep Color |
48 bits |
|
Video Bandwidth |
Up to 10.2GHz |
|
Vertical Frequency Range |
50 ~60 Hz |
|
Audio Performance |
SCAD PCM (7.1ch), Dolby Digital, True HD DTS-HD & Master Audio |
|
Lip Sync |
Yes |
|
3D enabled |
Yes |
|
Power Consumption (max.) |
15 Watts |
|
Operation Temperature |
0¢XC to 70¢XC. |
|
Switching Power Adapter |
5V 2.0A |
|
Housing |
Metal |
|
Dimension (mm) |
178x 113x 24.5mm |
|
Weight (g) |
1kg |
|
Features
¡P Compatible with HDMI V-1.4, DVI 1.0 and HDCP 1.2
¡P Full HD and 3D support
¡P Umcompressed video 1080p@ 60Hz@ 48bits and 4kx2K
¡P Supports high video resolution: 480p, 720I, 720p, 1080i, 1080p and 4Kx2K
¡P Enables 10.2 Gbps of HDMI 1.4 (including HDCP) over a single 100M (328ft) Cat. 5e/6 cable.
¡P Audio Dolby 7.1 compliant
¡P Supports Refresh Rate: 24Hz, 30Hz, 60Hz
¡P LED indications for operation modes
¡P Supports the transmission distance 100M. (up to 300M linking with another two receivers)
¡P Easy to install and simple to operate and the most effective solution for long signal extension.
¡P Ideal for video broadcasting, remote monitoring, presentations, educational facilities. | | |
|
|
|
|
