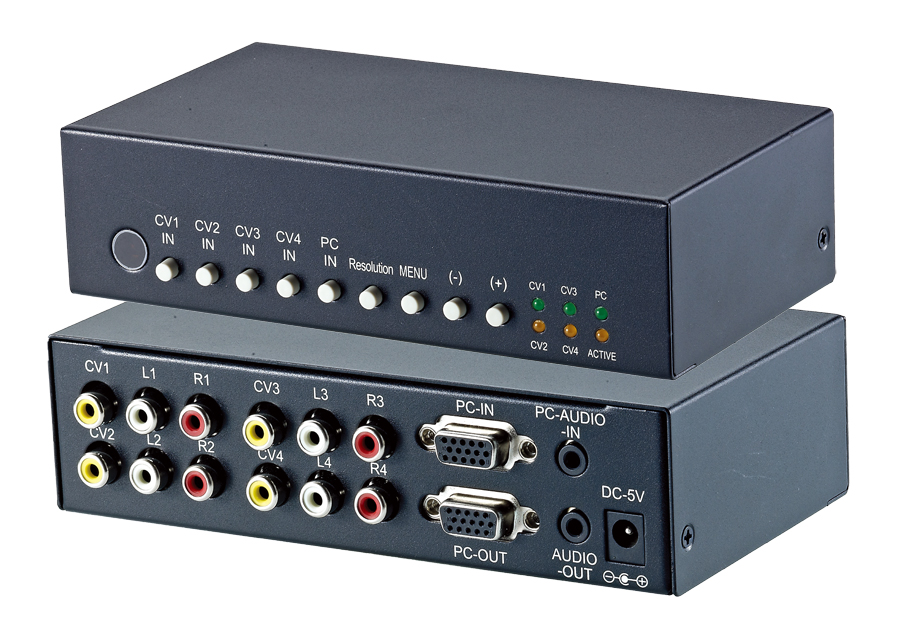

Video Up-Scaler (Composite to VGA) EC-41CVVGA


This Video Up-Scaler box allows analog and digital devices to be integrated seamlessly into the modern home theater system.  It automatically converts the video signal into higher resolution VGA signals and enables you to view Full HD 1080p video signals with the selection of the IR remote control provided.  The OSD menu allows you to easily switch between different resolution formats to the most up-to-date -1080p images.

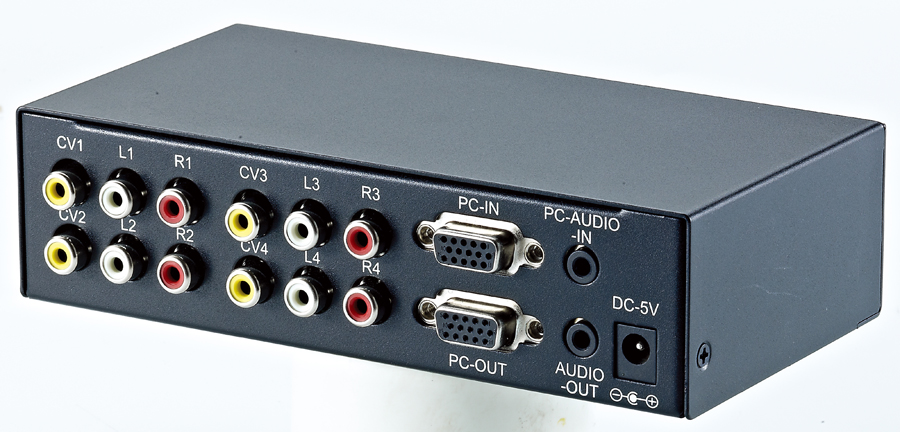

  • Sends four CVBS video + one VGA inputs to a VGA display
  • Output resolution up-scale to 1080p
  • Video Input ¡V CVBS( NTSC,PAL,SECAM ) format auto detecting.
  • VGA Output supports resolutions ¡V 800x600, 1024x768, 1360x768,1280x1024,1440x900, 1680x1050,1600x1200, 1920x1200, 720x480P, 1280x720P, 1920x1080P
  • Plug & Play - No software driver required.

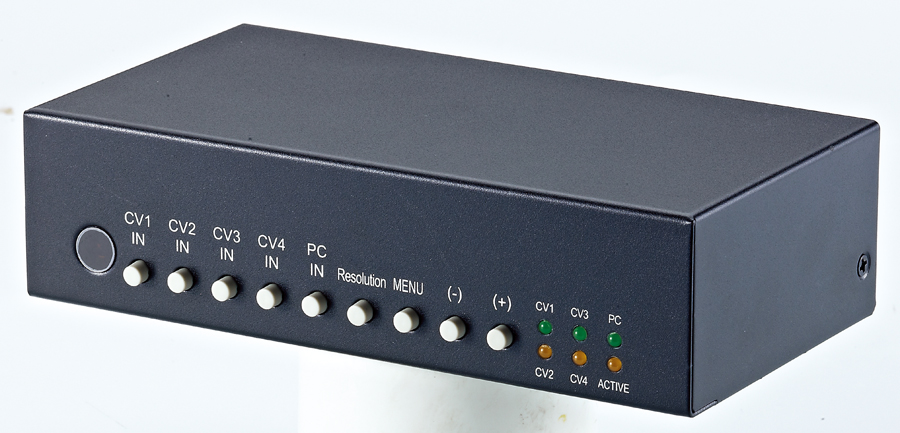

  • On Screen Display (OSD) adjustment - Adjustable control on Color, Brightness,Contrast and Tint Sharpness
  • Active LED indications for input sources and operation/power modes
  • Easy to install and simple to operate.
  • Remote Control provided
